Sensor and motor control with the GPIO

Les Pounder shows how we can take Scratch further with a community-developed tool that builds on our Scratch knowledge.

- Les Pounder

YOU NEED

Pi model 3/4/400

The latest Pi OS HCSR04-P

Ultrasonic sensor

L9110S motor controller DC motor

Micro USB breakout PSU for motor

7x F2F wires

2x M2F wires

Internet

Get the code https:// github.com/ lesp/ S3GPIOLXF283/ archive/ refs/heads/ main.zip

Over the past few issues we’ve learnt how to create games, control electronics and create shapes by calculating angles, all with Scratch 3. As good as Scratch 3 is there’s only so much that we can do with the GPIO, and the GPIO is the best feature of the Raspberry Pi. So how can we take our Scratch GPIO projects further? Well, for that we need S3GPIO.

S3GPIO is short for Scratch 3 GPIO and it was created by Simon Walters, a Raspberry Pi community member who’s campaigned for children to learn coding and electronics with Scratch. Walters first foray into the GPIO for Scratch was ScratchGPIO, based upon Scratch 1.4. This version is still active – in fact we can find out more at http://simplesi.net.

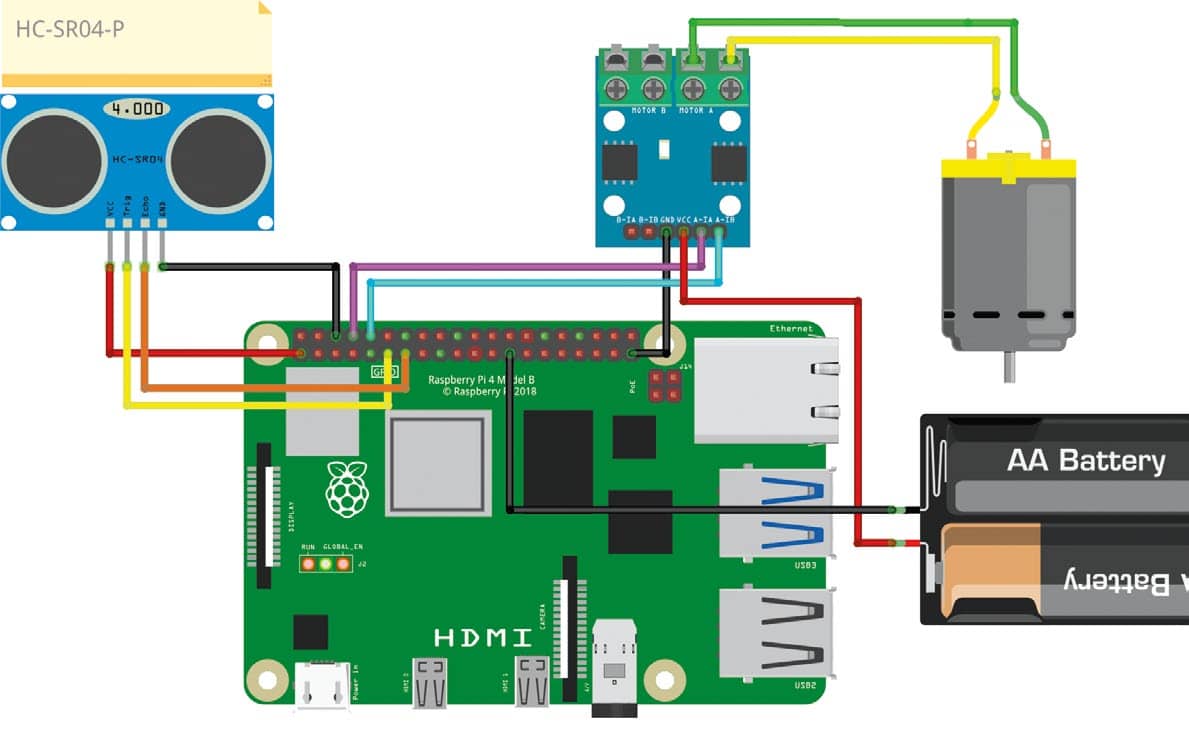

In this tutorial we’ll install S3GPIO, learn how to use an ultrasonic sensor as a controller for a DC motor, effectively setting the speed based on our distance from the sensor.
